001 - End-to-end on LIBZ data (raw .dat -> validation)

This notebook runs the full palmwtc pipeline starting from raw TOA5 .dat files on a real LIBZ-style oil-palm whole-tree-chamber dataset using default arguments throughout. Every step that the per-stage tutorials (010-035) cover individually is exercised here in one continuous flow.

The LIBZ raw data is not bundled with palmwtc and is not publicly available. This notebook is intended for collaborators who have their own equivalent oil-palm chamber dataset on disk. For a self-contained demo on the bundled synthetic sample, see 000_End_to_End_Synthetic.ipynb.

Pipeline shown (each cell is one palmwtc API call):

raw .dat per sensor
   |  get_cloud_sensor_dirs / read_toa5_file (in load_from_multiple_dirs)
   v
per-sensor DataFrames (chamber_1, chamber_2, climate, soil_sensor)
   |  outer-merge on TIMESTAMP  +  integrate_temp_humidity_c2
   v
unified df_raw  (~119 columns)
   |  export_monthly (optional)        QCProcessor.process_variable
   v                                       (full sensor set)
df_qc  (with *_qc_flag columns)
   |  prepare_chamber_data + calculate_flux_cycles
   v
cycles_all (per-cycle flux + R2 + qc_flag)
   |  compute_ml_anomaly_flags  (USE_ML_QC toggle)
   v
WindowSelector.score_cycles().identify_windows()
   |  run_science_validation  (Amax, Q10, WUE, inter-chamber agreement)
   v
threshold sensitivity sweep + visualisations

Requires:

• palmwtc 0.4.1+ installed (the AWS -- na_values fix is needed in any radiation-aware step).

• A LIBZ-style chamber-data root with this layout:

  $PALMWTC_LIBZ_DATA_ROOT/
   |-- Raw/shared_drive_palmstudio/Raw Data/Chamber/   <- TOA5 .dat archive
   |-- Data/Integrated_Monthly/                         <- post-010 monthly CSVs
   '-- config/variable_config.json                       <- QC variable config


• The env var PALMWTC_LIBZ_DATA_ROOT exported before launching JupyterLab (or papermill). Example:

  export PALMWTC_LIBZ_DATA_ROOT=/path/to/your/data


  If your subfolders do not match the layout above, three more env vars override individual paths: PALMWTC_LIBZ_RAW_DIR, PALMWTC_LIBZ_MONTHLY_DIR, PALMWTC_LIBZ_CONFIG_DIR.

• ~10-25 minutes wall time (the raw-load step is the slow one; expect a few minutes for QC + cycles + ML + validation).

1. Setup + assert real data

The whole notebook is driven by one required environment variable, PALMWTC_LIBZ_DATA_ROOT. From it we derive the raw-.dat root, the post-010 monthly CSV directory, and the QC config directory. The cell below aborts immediately with a clear message if the env var is missing or the expected subfolders are absent — it never silently falls back to the bundled synthetic sample.

If your data layout does not match the LIBZ convention, three more env vars (PALMWTC_LIBZ_RAW_DIR, PALMWTC_LIBZ_MONTHLY_DIR, PALMWTC_LIBZ_CONFIG_DIR) let you override individual subpaths.

import os
from pathlib import Path

import pandas as pd
import matplotlib.pyplot as plt

import palmwtc
from palmwtc.config import DataPaths

assert palmwtc.__version__ >= "0.4.1", \
    f"palmwtc 0.4.1+ required (AWS '--' na_values fix); got {palmwtc.__version__}"

paths = DataPaths.resolve()
print(paths.describe())

LIBZ_DATA_ROOT = os.environ.get("PALMWTC_LIBZ_DATA_ROOT")
if not LIBZ_DATA_ROOT:
    raise RuntimeError(
        "PALMWTC_LIBZ_DATA_ROOT is not set.\n\n"
        "This notebook walks the full pipeline on a real LIBZ-style chamber\n"
        "dataset. The raw LIBZ data is NOT bundled with palmwtc and is NOT\n"
        "publicly available - you need an existing chamber-data root with\n"
        "this subfolder layout:\n\n"
        "    $PALMWTC_LIBZ_DATA_ROOT/\n"
        "      Raw/shared_drive_palmstudio/Raw Data/Chamber/   <- TOA5 .dat archive\n"
        "      Data/Integrated_Monthly/                         <- post-010 monthly CSVs\n"
        "      config/variable_config.json                       <- QC variable config\n\n"
        "If your data is laid out differently, override individual subpaths\n"
        "with PALMWTC_LIBZ_RAW_DIR, PALMWTC_LIBZ_MONTHLY_DIR, and\n"
        "PALMWTC_LIBZ_CONFIG_DIR.\n\n"
        "For the bundled synthetic-data demo, see 000_End_to_End_Synthetic.ipynb."
    )

DATA_ROOT = Path(LIBZ_DATA_ROOT)
raw_root = Path(os.environ.get(
    "PALMWTC_LIBZ_RAW_DIR",
    str(DATA_ROOT / "Raw" / "shared_drive_palmstudio" / "Raw Data" / "Chamber"),
))
monthly_dir = Path(os.environ.get(
    "PALMWTC_LIBZ_MONTHLY_DIR",
    str(DATA_ROOT / "Data" / "Integrated_Monthly"),
))
config_dir = Path(os.environ.get(
    "PALMWTC_LIBZ_CONFIG_DIR",
    str(DATA_ROOT / "config"),
))

if not raw_root.exists() or not (raw_root / "main").exists():
    raise RuntimeError(
        f"Raw .dat root not found or missing 'main/' subdir at: {raw_root}\n"
        "Override with PALMWTC_LIBZ_RAW_DIR if your raw archive lives elsewhere."
    )

print(f"\nLIBZ data root  : {DATA_ROOT}")
print(f"  raw_root      : {raw_root}")
print(f"  monthly_dir   : {monthly_dir}")
print(f"  config_dir    : {config_dir}")
print(f"palmwtc version : {palmwtc.__version__}")

DataPaths (source=sample (bundled synthetic), site=libz):
  raw_dir       = /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/synthetic
  processed_dir = /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/Data/Integrated_QC_Data
  exports_dir   = /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/exports
  config_dir    = /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/config
  extras        = <none>

LIBZ data root  : /Users/adisapoetro/Projects/flux_chamber/research
  raw_root      : /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber
  monthly_dir   : /Users/adisapoetro/Projects/flux_chamber/research/Data/Integrated_Monthly
  config_dir    : /Users/adisapoetro/Projects/flux_chamber/research/config
palmwtc version : 0.4.1

2. Discover raw .dat directories

get_cloud_sensor_dirs(raw_root) walks the LIBZ shared-drive layout (main/ plus update_YYMMDD/ increments) and returns one entry list per sensor type: chamber_1, chamber_2, climate, soil_sensor.

from palmwtc.io import get_cloud_sensor_dirs

sensor_dirs = get_cloud_sensor_dirs(raw_root)

for sensor, entries in sensor_dirs.items():
    print(f"  {sensor:<14} {len(entries):>3} dirs")

  Cloud chamber_1: 15 directories found
  Cloud chamber_2: 15 directories found
  Cloud climate: 15 directories found
  Cloud soil_sensor: 15 directories found
  chamber_1       15 dirs
  chamber_2       15 dirs
  climate         15 dirs
  soil_sensor     15 dirs

3. Demonstrate the raw TOA5 .dat API on one sensor

load_from_multiple_dirs(entries) reads every .dat file under each sensor directory (using read_toa5_file internally) and concatenates them chronologically into a DataFrame. This is the building block notebook 010_Data_Integration uses to build the full multi-sensor df_raw.

We exercise the API on one sensor (chamber_1) here so the reader sees the raw-data path explicitly. The full multi-sensor integration (chamber_1 + chamber_2 + climate + soil_sensor + weather station + the C2 air-T / RH fallback merge etc. — about 50 cells of LIBZ-specific plumbing) lives in notebook 010 and produces the Integrated_Monthly/Integrated_Data_*.csv files that §4 below loads.

from palmwtc.io import load_from_multiple_dirs

c1_df = load_from_multiple_dirs(sensor_dirs["chamber_1"])
print(f"chamber_1 raw .dat -> DataFrame:")
print(f"  {c1_df.shape[0]:,} rows  x  {c1_df.shape[1]} columns")
print(f"  time range: {c1_df['TIMESTAMP'].min()}  ->  {c1_df['TIMESTAMP'].max()}")
print(f"  columns: {sorted(c1_df.columns.tolist())[:10]} ...")

  Found 293 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/main/chamber_1

  Loaded 3606463 records
  Found 24 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_251230/11_chamber1

  Loaded 198225 records
  Found 25 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_251230/12_chamber1

  Loaded 206399 records
  Found 12 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260115/01_chamber1

  Loaded 108000 records
  Found 13 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260131/01_chamber1

  Loaded 108000 records
  Found 16 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260221/02_chamber1

  Loaded 101678 records
  Found 5 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260228/02_chamber1
  Loaded 42600 records
  Found 6 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260307/03_chamber1

  Loaded 49738 records
  Found 5 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260314/03_chamber1
  Loaded 35386 records
  Found 8 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260328/03_chamber1

  Loaded 86762 records
  Found 2 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260404/03_chamber1
  Loaded 17340 records
  Found 3 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260404/04_chamber1

  Loaded 28800 records
  Found 5 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260411/04_chamber1
  Loaded 34950 records
  Found 6 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260418/04_chamber1

  Loaded 37725 records
  Found 6 files in /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber/update_260425/04_chamber1

  Loaded 50400 records

  Combined: 4,199,842 unique records from 15 source(s)
chamber_1 raw .dat -> DataFrame:
  4,199,842 rows  x  24 columns
  time range: 2024-03-02 10:12:28  ->  2026-04-25 12:50:16
  columns: ['Active_Chamber', 'AtmosphericPressure_1', 'CO2', 'CO2b', 'CO2c', 'ChamberIsClosed', 'Chamber_state', 'H2O', 'H2Ob', 'H2Oc'] ...

4. Load the integrated monthly CSVs (production starting point)

For the actual pipeline run we use the pre-integrated monthly CSVs that notebook 010 produces — Integrated_Data_YYYY-MM.csv files in paths.processed_dir/../Integrated_Monthly/. These contain the full multi-sensor merge (both chambers, climate, soil, weather station) already done.

load_monthly_data concatenates all monthly files chronologically and applies a first-pass physical-bounds filter (drops rows with out-of-range pressure, temperature, RH, or soil water potential).

from palmwtc.io import load_monthly_data

# monthly_dir was set in §1 from PALMWTC_LIBZ_DATA_ROOT (or the override env var).
if not monthly_dir.exists() or not list(monthly_dir.glob("Integrated_Data_*.csv")):
    raise RuntimeError(
        f"No Integrated_Data_YYYY-MM.csv files found at {monthly_dir}.\n"
        "Run notebook 010 first to produce them, or override\n"
        "PALMWTC_LIBZ_MONTHLY_DIR to a directory that contains them."
    )

df_raw = load_monthly_data(monthly_dir).reset_index()
print(f"df_raw: {df_raw.shape[0]:,} rows  x  {df_raw.shape[1]} columns")
print(f"Time range: {df_raw['TIMESTAMP'].min()}  ->  {df_raw['TIMESTAMP'].max()}")

Loading 26 monthly file(s)...
  Integrated_Data_2024-03.csv: 50,006 rows (2024-03-02 10:12:28 to 2024-03-08 09:26:08)
  Integrated_Data_2024-04.csv: 1,050 rows (2024-04-05 10:10:20 to 2024-04-24 11:45:16)
  Integrated_Data_2024-05.csv: 128,507 rows (2024-05-07 12:00:20 to 2024-05-31 23:50:16)

  Integrated_Data_2024-06.csv: 111,277 rows (2024-06-01 00:00:20 to 2024-06-30 23:50:16)
  Integrated_Data_2024-07.csv: 162,717 rows (2024-07-01 00:00:20 to 2024-07-31 23:50:16)

/Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/io/loaders.py:83: DtypeWarning: Columns (12,13) have mixed types. Specify dtype option on import or set low_memory=False.
  df = pd.read_csv(f, parse_dates=["TIMESTAMP"])

  Integrated_Data_2024-08.csv: 182,595 rows (2024-08-01 00:00:20 to 2024-08-31 23:50:32)
  Integrated_Data_2024-09.csv: 171,318 rows (2024-09-01 00:00:36 to 2024-09-30 23:50:36)

  Integrated_Data_2024-10.csv: 214,952 rows (2024-10-01 00:00:40 to 2024-10-31 23:50:36)

  Integrated_Data_2024-11.csv: 227,314 rows (2024-11-01 00:00:40 to 2024-11-30 23:50:16)

  Integrated_Data_2024-12.csv: 233,254 rows (2024-12-01 00:01:00 to 2024-12-31 23:50:36)

  Integrated_Data_2025-01.csv: 217,066 rows (2025-01-01 00:00:20 to 2025-01-31 23:50:16)

  Integrated_Data_2025-02.csv: 201,037 rows (2025-02-01 00:00:20 to 2025-02-28 23:50:36)

  Integrated_Data_2025-03.csv: 209,528 rows (2025-03-01 00:00:20 to 2025-03-31 23:50:16)
  Integrated_Data_2025-04.csv: 161,908 rows (2025-04-01 00:00:20 to 2025-04-30 23:50:16)

  Integrated_Data_2025-05.csv: 200,008 rows (2025-05-01 00:00:20 to 2025-05-31 23:50:16)
  Integrated_Data_2025-06.csv: 80,777 rows (2025-06-01 00:00:20 to 2025-06-12 12:50:16)

  Integrated_Data_2025-07.csv: 164,056 rows (2025-07-05 08:30:20 to 2025-07-31 23:50:36)
  Integrated_Data_2025-08.csv: 187,785 rows (2025-08-01 00:00:20 to 2025-08-31 23:50:36)

  Integrated_Data_2025-09.csv: 198,485 rows (2025-09-01 00:00:20 to 2025-09-30 23:50:36)

  Integrated_Data_2025-10.csv: 212,015 rows (2025-10-01 00:00:20 to 2025-10-31 23:50:36)

  Integrated_Data_2025-11.csv: 217,515 rows (2025-11-01 00:00:20 to 2025-11-30 23:50:36)

  Integrated_Data_2025-12.csv: 215,860 rows (2025-12-01 00:00:20 to 2025-12-31 23:50:16)

  Integrated_Data_2026-01.csv: 226,340 rows (2026-01-01 00:00:20 to 2026-01-31 13:20:36)
  Integrated_Data_2026-02.csv: 156,391 rows (2026-02-02 09:00:20 to 2026-02-28 23:50:36)

  Integrated_Data_2026-03.csv: 220,297 rows (2026-03-01 00:00:20 to 2026-03-31 23:50:36)
  Integrated_Data_2026-04.csv: 158,480 rows (2026-04-01 00:00:20 to 2026-04-25 12:50:36)

Removing 57,604 rows containing outliers (Temp/Pres/RH < -100, Temp > 100, WP > 1000, Pres < 50).

Total: 4,452,934 rows
Date range: 2024-03-02 10:12:28 to 2026-04-25 12:50:36

df_raw: 4,452,934 rows  x  42 columns
Time range: 2024-03-02 10:12:28  ->  2026-04-25 12:50:36

5. (Optional) Re-export monthly CSVs from df_raw

export_monthly splits a DataFrame by calendar month and writes one Integrated_Data_YYYY-MM.csv per month. This is the inverse of §4 — useful if you want to round-trip df_raw to disk. Off by default because §4 already loaded the existing CSVs; turning this on would rewrite them.

from palmwtc.io import export_monthly

EXPORT_MONTHLY = False                         # set True to round-trip to disk
if EXPORT_MONTHLY:
    monthly_dir.mkdir(parents=True, exist_ok=True)
    export_monthly(df_raw, monthly_dir)
    print(f"Monthly CSVs (re)written under: {monthly_dir}")
else:
    print(f"EXPORT_MONTHLY=False -> df_raw is used in-memory only "
          "(no disk write).")

EXPORT_MONTHLY=False -> df_raw is used in-memory only (no disk write).

6. Data integrity report

data_integrity_report summarises NaN fraction and time-gap statistics per column. A first sanity check before QC: any column with very high NaN % or unexpectedly large gaps deserves a closer look in 011_Weather_vs_Chamber before trusting the downstream flux cycles.

from palmwtc.io import data_integrity_report

integrity = data_integrity_report(df_raw)
integrity.head(20)

	rows	start	end	median_dt_sec	pct_duplicates	gaps_over_cycle_pct	missing_CO2_C1	missing_CO2_C2	missing_Temp_1_C1	missing_Temp_1_C2	missing_H2O_C1	missing_H2O_C2	missing_H2O_C1_corrected	missing_H2O_C2_corrected	wpl_input_valid_pct_C1	wpl_input_valid_pct_C2
0	4452934	2024-03-02 10:12:28	2026-04-25 12:50:36	4.0	0.0	1.276686	6.962017	33.444466	9.384487	10.15353	6.962017	33.444466	NaN	NaN	85.436456	60.999355

7. Rule-based QC across the full sensor set

QCProcessor is the OOP entry point that wraps every individual rule (physical bounds, IQR, rate-of-change, persistence, breakpoints, drift, sensor exclusion). The variable-by-variable configuration lives in paths.config_dir / "variable_config.json"; one process_variable(var) call applies the full rule set for that variable and adds a <var>_qc_flag column with values 0 (good) / 1 (suspect) / 2 (bad).

For the LIBZ deployment ~12 variables are configured (CO2, H2O, Temp_1, RH_1, VaporPressure_1, AtmosphericPressure_1, plus battery proxies), each per chamber. The full multi-pass QC is what notebook 020 spends 17 minutes on.

import json
from palmwtc.qc import QCProcessor

# config_dir was set in §1 from PALMWTC_LIBZ_DATA_ROOT (or PALMWTC_LIBZ_CONFIG_DIR).
var_cfg_path = config_dir / "variable_config.json"
if not var_cfg_path.exists():
    raise FileNotFoundError(
        f"variable_config.json not found at {var_cfg_path}. "
        "Override PALMWTC_LIBZ_CONFIG_DIR to point at the directory that contains it."
    )
var_cfg = json.loads(var_cfg_path.read_text())

# variable_config.json has bare logical names ("CO2", "H2O", "Temp") whose
# .columns field expands to actual chamber-suffixed column names
# (e.g. CO2 -> ["CO2_C1", "CO2_C2"]). Build the flat list of columns to QC,
# filtering to columns actually present in df_raw and skipping *_source markers.
qc_columns = []
for var, sub in var_cfg.items():
    qc_columns.extend(sub.get("columns", []))
qc_columns = [c for c in dict.fromkeys(qc_columns)            # de-dupe, preserve order
              if c in df_raw.columns and not c.endswith("_source")]

print(f"Logical variables in config : {len(var_cfg)}  ({sorted(var_cfg)})")
print(f"Actual columns to QC        : {len(qc_columns)}")
print(f"  {qc_columns}")

proc = QCProcessor(df=df_raw.copy(), config_dict=var_cfg)

Logical variables in config : 12  (['AtmosphericPressure', 'CO2', 'H2O', 'PressureHead', 'RH', 'SoilAirTemp', 'SoilRH', 'SoilTemp', 'SoilWaterPot', 'Temp', 'VaporPressure', 'battery_proxy'])
Actual columns to QC        : 12
  ['CO2_C1', 'CO2_C2', 'H2O_C1', 'H2O_C2', 'VaporPressure_1_C1', 'Temp_1_C1', 'Temp_1_C2', 'RH_1_C1', 'RH_1_C2', 'AtmosphericPressure_1_C1', 'AirTC_Avg_Soil', 'RH_Avg_Soil']

# Apply the full rule-set, one column at a time.
qc_results = {}
for col in qc_columns:
    res = proc.process_variable(col, random_seed=42)
    qc_results[col] = res["summary"]

df_qc = proc.get_processed_dataframe()
print(f"df_qc shape after QC : {df_qc.shape[0]:,} rows x {df_qc.shape[1]} cols")

# Summarise pass / suspect / bad per QC'd column.
summary = pd.DataFrame.from_dict(qc_results, orient="index")
keep_cols = [c for c in
             ("flag_0_count", "flag_1_count", "flag_2_count",
              "flag_0_percent", "flag_1_percent", "flag_2_percent")
             if c in summary.columns]
summary[keep_cols].sort_index()

  Warning: Persistence check failed for CO2_C1: window must be an integer 0 or greater

  Warning: Persistence check failed for CO2_C2: window must be an integer 0 or greater

  Warning: Persistence check failed for H2O_C1: window must be an integer 0 or greater

  Warning: Persistence check failed for H2O_C2: window must be an integer 0 or greater

  Warning: Persistence check failed for VaporPressure_1_C1: window must be an integer 0 or greater

  Warning: Persistence check failed for Temp_1_C1: window must be an integer 0 or greater

  Warning: Persistence check failed for Temp_1_C2: window must be an integer 0 or greater

  Warning: Persistence check failed for RH_1_C1: window must be an integer 0 or greater

  Warning: Persistence check failed for RH_1_C2: window must be an integer 0 or greater

  Warning: Persistence check failed for AtmosphericPressure_1_C1: window must be an integer 0 or greater

  Warning: Persistence check failed for AirTC_Avg_Soil: window must be an integer 0 or greater

  Warning: Persistence check failed for RH_Avg_Soil: window must be an integer 0 or greater
df_qc shape after QC : 4,452,934 rows x 66 cols

	flag_0_count	flag_1_count	flag_2_count	flag_0_percent	flag_1_percent	flag_2_percent
AirTC_Avg_Soil	4452173	761	0	99.982910	0.017090	0.000000
AtmosphericPressure_1_C1	4448793	4141	0	99.907005	0.092995	0.000000
CO2_C1	4395953	51447	5534	98.720372	1.155351	0.124278
CO2_C2	4133278	301131	18525	92.821452	6.762530	0.416018
H2O_C1	4012902	109216	330816	90.118156	2.452675	7.429169
H2O_C2	4069450	136126	247358	91.388060	3.056996	5.554944
RH_1_C1	4444146	8788	0	99.802647	0.197353	0.000000
RH_1_C2	4419908	33026	0	99.258332	0.741668	0.000000
RH_Avg_Soil	4441847	11087	0	99.751018	0.248982	0.000000
Temp_1_C1	3107304	1345630	0	69.781048	30.218952	0.000000
Temp_1_C2	4403992	48942	0	98.900904	1.099096	0.000000
VaporPressure_1_C1	4363431	89501	2	97.990022	2.009933	0.000045

8. Flux cycles - both chambers

Two-chamber loop: prepare_chamber_data selects and cleans columns for one chamber suffix using the QC flags from §7; calculate_flux_cycles finds every closed-chamber cycle, fits a linear regression to the CO2 ramp, and returns one row per cycle with flux, fit metrics (R2, NRMSE, SNR), and a per-cycle QC flag.

Zero kwargs — palmwtc 0.3.0+ defaults (accepted_co2_qc_flags=(0,), apply_wpl=False, etc.) match LIBZ production. Inspect with help(palmwtc.flux.prepare_chamber_data).

from palmwtc.flux import prepare_chamber_data, calculate_flux_cycles

CHAMBER_MAP = {"C1": "Chamber 1", "C2": "Chamber 2"}

cycles_per_chamber = []
for suffix, name in CHAMBER_MAP.items():
    if f"CO2_{suffix}" not in df_qc.columns:
        print(f"  [skip] {name}: CO2_{suffix} column not present")
        continue
    chamber_df = prepare_chamber_data(df_qc, suffix)
    cycles = calculate_flux_cycles(chamber_df, name)
    print(f"  [{name}] {len(cycles):>5} cycles  "
          f"|  mean flux: {cycles['flux_absolute'].mean():+.2f} umol m-2 s-1")
    cycles_per_chamber.append(cycles)

cycles_all = pd.concat(cycles_per_chamber, ignore_index=True)
cycles_all = cycles_all.rename(columns={"flux_date": "flux_datetime"})

print(f"\nCombined: {len(cycles_all):,} cycles "
      f"across {cycles_all['Source_Chamber'].nunique()} chamber(s)")
cycles_all[
    ["Source_Chamber", "cycle_id", "flux_datetime",
     "flux_absolute", "flux_slope", "r2", "qc_flag"]
].head()

  [Chamber 1] 49613 cycles  |  mean flux: -2.66 umol m-2 s-1

  [Chamber 2] 32123 cycles  |  mean flux: -2.47 umol m-2 s-1

Combined: 81,736 cycles across 2 chamber(s)

	Source_Chamber	cycle_id	flux_datetime	flux_absolute	flux_slope	r2	qc_flag
0	Chamber 1	1	2024-03-02 10:12:28	-3.005040	-0.037436	0.961666	0
1	Chamber 1	2	2024-03-02 10:20:20	-2.306928	-0.028733	0.988848	1
2	Chamber 1	3	2024-03-04 07:30:24	-0.575610	-0.007041	0.827022	0
3	Chamber 1	4	2024-03-04 07:40:20	-0.940172	-0.011509	0.929553	0
4	Chamber 1	5	2024-03-04 07:50:20	-1.354833	-0.016595	0.956027	1

9. ML anomaly overlay (toggleable)

compute_ml_anomaly_flags adds two unsupervised detectors on top of the rule-based QC: an Isolation Forest (low-density anomalies) and a Robust-Covariance / Minimum-Covariance-Determinant detector (Mahalanobis distance from the robust centroid). Trained on rule-based A/B cycles (flux_qc <= 1), scored on all cycles, combined in AND mode by default — flagging a cycle only when both detectors agree.

Set USE_ML_QC = False to keep the rule-based flags only and skip the ~30-second model fit. The downstream cells use whichever flag set is present, so the rest of the notebook is unaffected.

from palmwtc.flux import compute_ml_anomaly_flags

USE_ML_QC = True   # set False to skip ML overlay (rule-based flags only)

if USE_ML_QC:
    cycles_all = compute_ml_anomaly_flags(cycles_all)
    n_total = len(cycles_all)
    n_ml = int(cycles_all["ml_anomaly_flag"].sum())
    n_rule_pass = int((cycles_all["qc_flag"] <= 1).sum())
    print(f"ML overlay applied (AND mode):")
    print(f"  total cycles                      : {n_total:>6,}")
    print(f"  rule-based pass (A/B, qc<=1)      : {n_rule_pass:>6,}  "
          f"({100*n_rule_pass/n_total:.1f}%)")
    print(f"  ml_anomaly_flag = 1 (joint detect): {n_ml:>6,}  "
          f"({100*n_ml/n_total:.1f}%)")
    print()
    print("IF score (lower = more anomalous):")
    print(cycles_all["ml_if_score"].describe().round(4))
    print()
    print("MCD distance (larger = farther from cluster):")
    print(cycles_all["ml_mcd_dist"].describe().round(3))
else:
    cycles_all["ml_anomaly_flag"] = 0
    cycles_all["ml_if_score"] = float("nan")
    cycles_all["ml_mcd_dist"] = float("nan")
    print("USE_ML_QC=False -> ml_anomaly_flag set to 0 for all cycles "
          "(downstream uses rule-based flags only).")

ML overlay applied (AND mode):
  total cycles                      : 81,736
  rule-based pass (A/B, qc<=1)      : 81,736  (100.0%)
  ml_anomaly_flag = 1 (joint detect):  1,117  (1.4%)

IF score (lower = more anomalous):
count    81736.0000
mean        -0.3819
std          0.0360
min         -0.7288
25%         -0.3937
50%         -0.3699
75%         -0.3573
max         -0.3412
Name: ml_if_score, dtype: float64

MCD distance (larger = farther from cluster):
count    81736.000
mean        11.327
std        338.896
min          0.961
25%          2.244
50%          3.161
75%          5.720
max      57148.294
Name: ml_mcd_dist, dtype: float64

10. Calibration windows

WindowSelector scores every cycle (regression, robustness, sensor QC, drift, cross-chamber agreement) and identifies consecutive spans of high-quality days suitable for XPalm calibration. The synthetic sample typically yields zero qualifying windows (only 7 days); a real multi-month dataset yields several.

from palmwtc.windows import WindowSelector

ws = WindowSelector(cycles_all)
ws.score_cycles()
ws.identify_windows()
ws.summary()

n_high_conf = int((ws.cycles_df["cycle_confidence"] >= 0.65).sum())
print(f"\nCycles with cycle_confidence >= 0.65: {n_high_conf:,}")

=== WindowSelector summary ===

  Total cycles loaded : 81,736
  Confidence mean     : 0.489
  Cycles ≥ 0.65       : 0 (0.0%)

Cycles with cycle_confidence >= 0.65: 0

11. Science validation

run_science_validation checks the cycles against published oil-palm ecophysiology references:

Test	Reference range
Light-response Amax	15-35 umol m-2 s-1 (Lamade & Bouillet 2005)
Temperature response Q10	1.5-3.5 (tropical canopies)
Water-use efficiency vs VPD	Medlyn et al. 2011 stomatal optimality
Inter-chamber agreement	< 30% relative mean difference

Tests need Global_Radiation, h2o_slope, and vpd_kPa columns. Those come from the weather-station merge + the H2O flux step. Real multi-month LIBZ data populates them naturally.

from palmwtc.validation import run_science_validation

cycles_for_val = ws.cycles_df.copy()
for col in ("Global_Radiation", "h2o_slope", "vpd_kPa"):
    if col not in cycles_for_val.columns:
        cycles_for_val[col] = float("nan")
if "co2_slope" not in cycles_for_val.columns:
    cycles_for_val["co2_slope"] = cycles_for_val["flux_slope"]

report = run_science_validation(cycles_for_val)
sc = report["scorecard"]

pd.DataFrame({
    "metric": ["pass", "borderline", "fail", "n/a"],
    "count":  [sc["n_pass"], sc["n_borderline"], sc["n_fail"], sc["n_na"]],
})

	metric	count
0	pass	0
1	borderline	1
2	fail	0
3	n/a	10

12. Threshold sensitivity sweep

How does the science-validation outcome change as you tighten / loosen the cycle_confidence cut-off? Sweep three thresholds and re-run validation on the surviving subset. The dedicated [035 tutorial] (035_QC_Threshold_Sensitivity.ipynb) shows the full grid.

sweep = []
for thresh in (0.50, 0.65, 0.80):
    sub = cycles_for_val[cycles_for_val["cycle_confidence"] >= thresh].copy()
    if len(sub) == 0:
        sweep.append({
            "cycle_confidence_min": thresh, "n_cycles": 0,
            "n_pass": 0, "n_borderline": 0, "n_fail": 0, "n_na": 4,
        })
        continue
    rep = run_science_validation(sub)
    sw = rep["scorecard"]
    sweep.append({
        "cycle_confidence_min": thresh,
        "n_cycles": len(sub),
        "n_pass": sw["n_pass"], "n_borderline": sw["n_borderline"],
        "n_fail": sw["n_fail"], "n_na": sw["n_na"],
    })

pd.DataFrame(sweep)

	cycle_confidence_min	n_cycles	n_pass	n_borderline	n_fail	n_na
0	0.50	57005	0	1	0	10
1	0.65	0	0	0	0	4
2	0.80	0	0	0	0	4

13. Visualisations

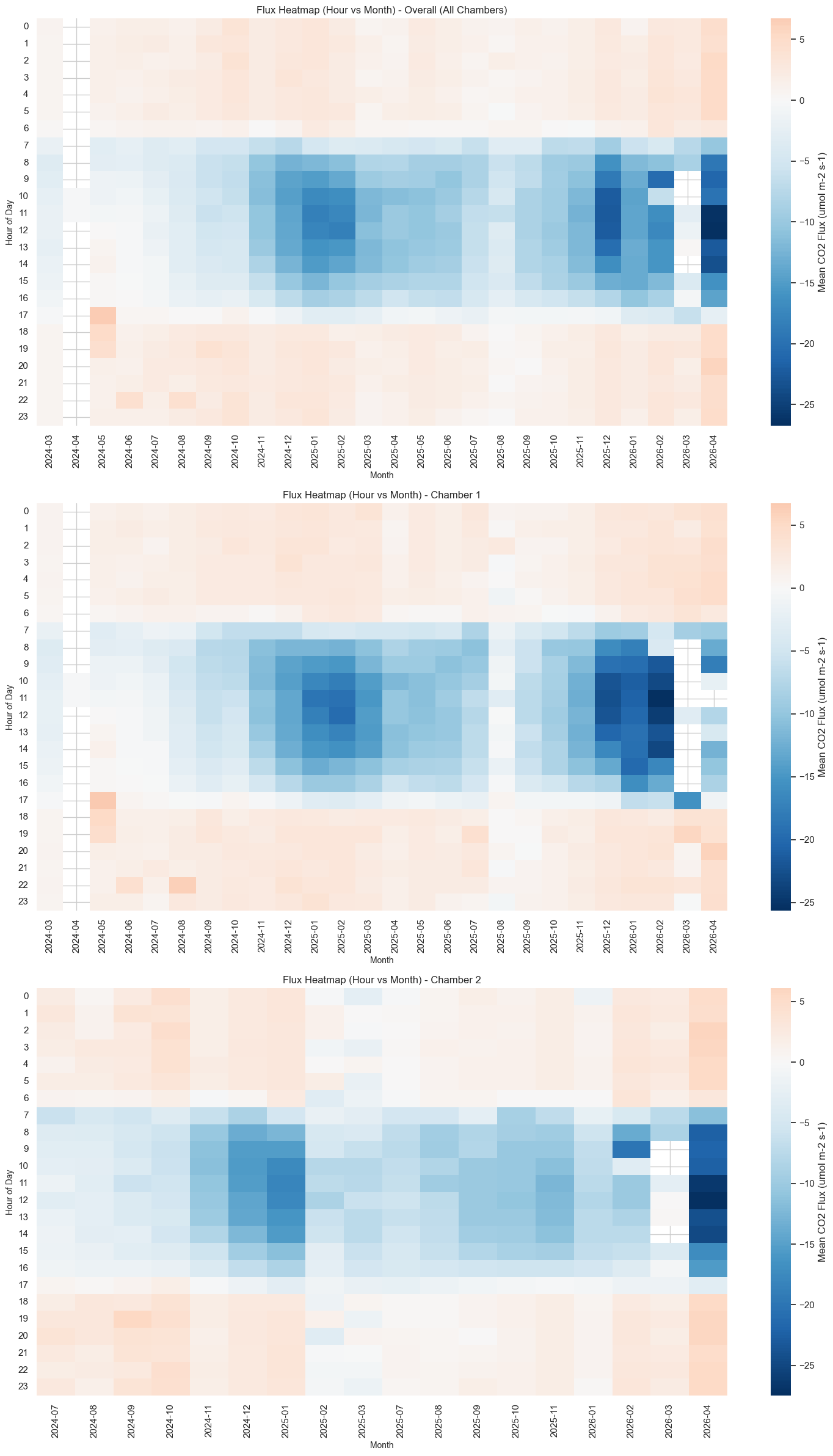

Three first-look plots that confirm whether the chambers captured a real biological signal:

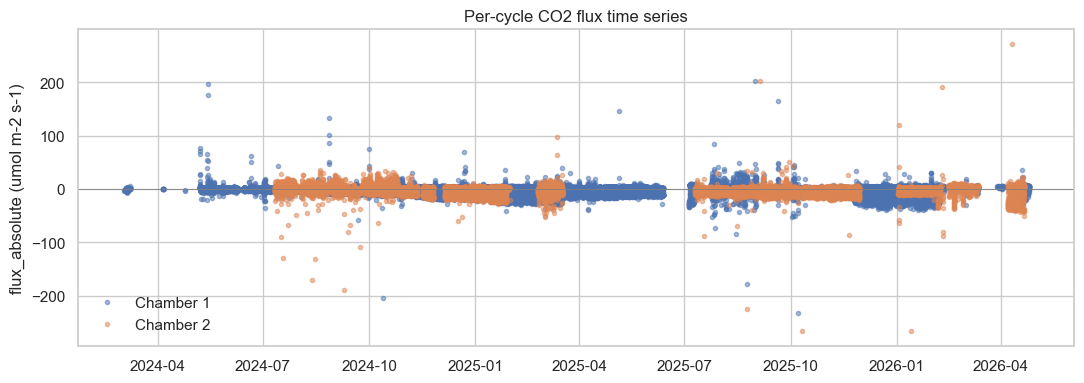

1. Per-cycle flux time series.

2. Diurnal-by-month heatmap (day = uptake -> blue, night = release -> red).

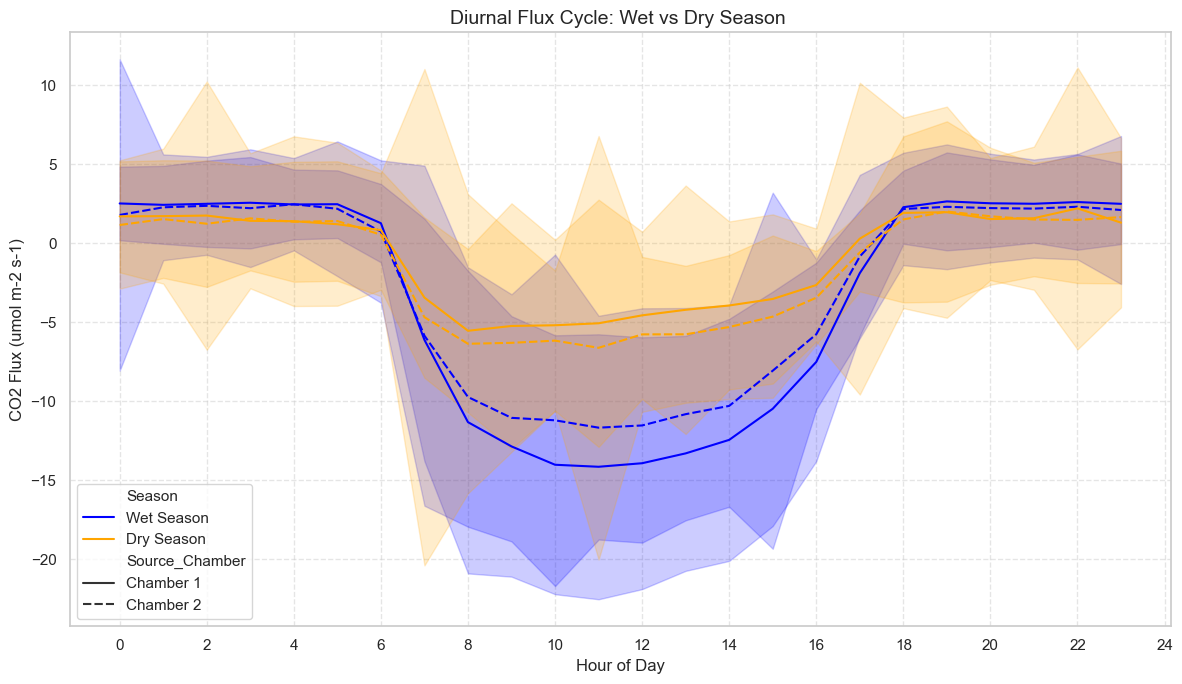

3. Tropical seasonal-diurnal pattern (averaged over the dataset).

from palmwtc.viz import set_style

set_style()

cycles_for_viz = cycles_for_val.copy()
cycles_for_viz["flux_date"] = cycles_for_viz["flux_datetime"]   # alias

# 1. Per-cycle flux time series
fig1, ax1 = plt.subplots(figsize=(11, 4))
for chamber, sub in cycles_for_viz.groupby("Source_Chamber"):
    ax1.plot(sub["flux_datetime"], sub["flux_absolute"],
             marker=".", linestyle="", alpha=0.5, label=str(chamber))
ax1.axhline(0, color="grey", lw=0.6)
ax1.set_ylabel("flux_absolute (umol m-2 s-1)")
ax1.set_title("Per-cycle CO2 flux time series")
ax1.legend(loc="best", frameon=False)
fig1.tight_layout()
fig1    # last expression -> inline display in Jupyter / embed in papermill

from palmwtc.viz import plot_flux_heatmap

fig2 = plot_flux_heatmap(cycles_for_viz)
fig2    # None if insufficient data span

from palmwtc.viz import plot_tropical_seasonal_diurnal

fig3 = plot_tropical_seasonal_diurnal(cycles_for_viz)
fig3    # None if insufficient data span

14. Where the canonical artefacts went

DataPaths.resolve() returns an exports_dir that points wherever your project layout sends pipeline outputs. The official artefacts produced by palmwtc run (and equivalent to the variables created above) are:

Object in this notebook	Canonical artefact path
df_raw (after monthly export, §5)	processed_dir/../Integrated_Monthly/Integrated_Data_YYYY-MM.csv
df_qc (after §7 QC pass)	processed_dir/020_rule_qc_output.parquet
cycles_all after §8 + §9 ML overlay	exports_dir/digital_twin/01_chamber_cycles.csv
ws.cycles_df after §10	exports_dir/digital_twin/031_scored_cycles.csv
Calibration windows	exports_dir/digital_twin/032_calibration_windows.csv

This notebook does not write to disk by default (only §5 writes monthly CSVs, and only when EXPORT_MONTHLY=True). Use the palmwtc run CLI when you want all artefacts persisted.

print(f"DataPaths source     : {paths.source}")
print(f"raw_dir              : {paths.raw_dir}")
print(f"processed_dir        : {paths.processed_dir}")
print(f"exports_dir          : {paths.exports_dir}")
print(f"config_dir           : {paths.config_dir}")
print()
print(f"Raw .dat root used   : {raw_root}")
print(f"USE_ML_QC            : {USE_ML_QC}")
print(f"EXPORT_MONTHLY       : {EXPORT_MONTHLY}")

DataPaths source     : sample (bundled synthetic)
raw_dir              : /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/synthetic
processed_dir        : /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/Data/Integrated_QC_Data
exports_dir          : /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/exports
config_dir           : /Users/adisapoetro/Projects/flux_chamber/palmwtc/src/palmwtc/data/sample/config

Raw .dat root used   : /Users/adisapoetro/Projects/flux_chamber/research/Raw/shared_drive_palmstudio/Raw Data/Chamber
USE_ML_QC            : True
EXPORT_MONTHLY       : False

15. What this notebook deliberately does not cover

The full per-stage tutorials in this directory go deeper into each step. Those listed below are intentionally outside the canonical end-to-end pipeline:

Topic	Where to find it
Raw .dat -> integrated parquet (deep dive)	010_Data_Integration
Weather-station diagnostics	011_Weather_vs_Chamber
Rule-based QC walkthrough (deep dive)	020_QC_Rule_Based
ML-enhanced QC overlay (deep dive)	022_QC_ML_Enhanced
Field-alert HTML email	023_Field_Alert_Report
Cross-chamber bias diagnostics	025 / 026
Per-stage flux QC details	030_Flux_Cycle_Calculation
Window-selection methodology	031 / 032
Science-validation deep-dive	033_Science_Validation
QC + window audit	034_QC_and_Window_Audit
Full threshold sensitivity grid	035_QC_Threshold_Sensitivity

Project-specific downstream analyses (drought response, carbon budget, XPalm digital-twin calibration) live outside the public package; see the research/ workspace if you have access. XPalm/Julia calibration is explicitly out of scope for palmwtc.
